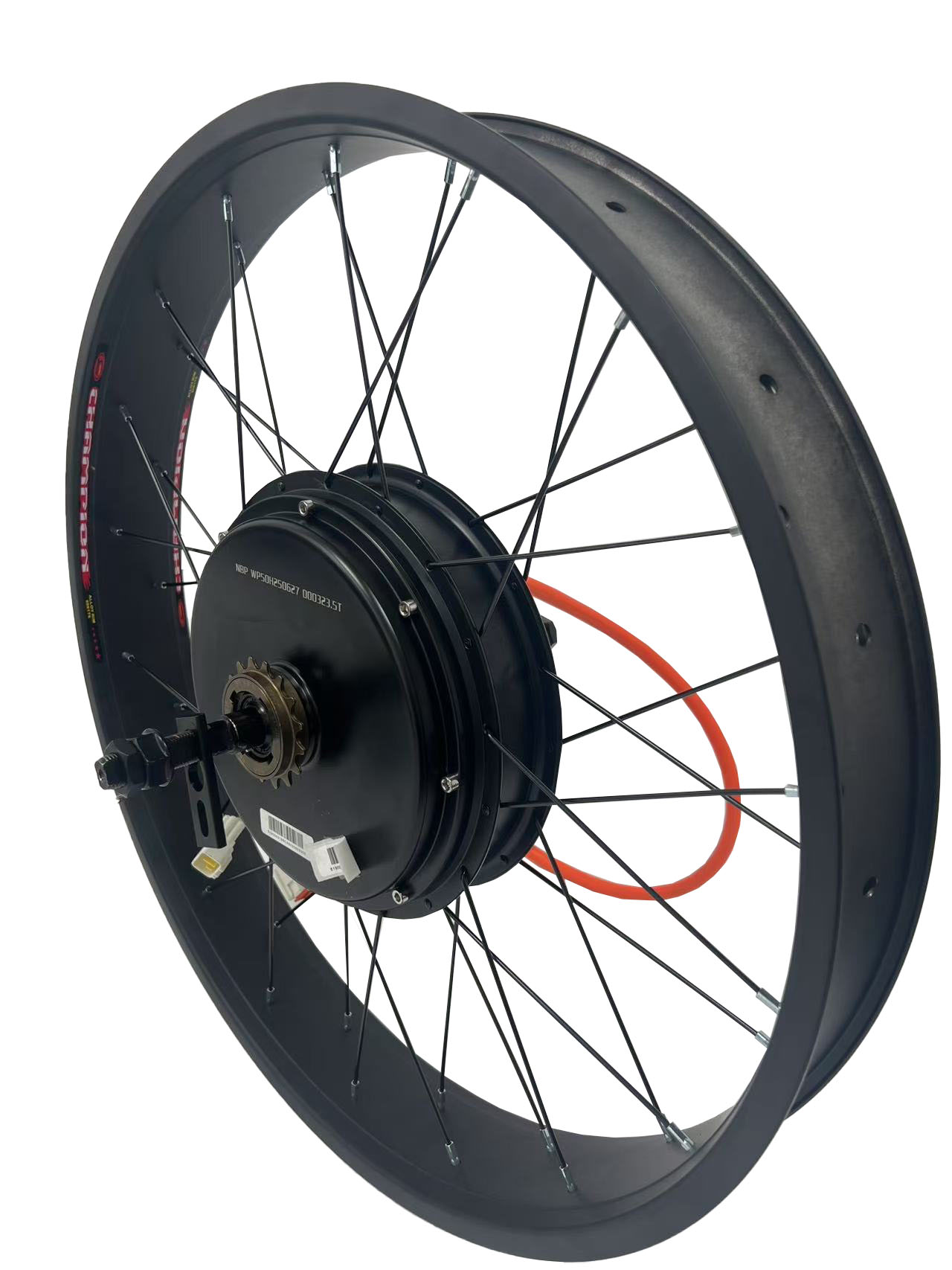

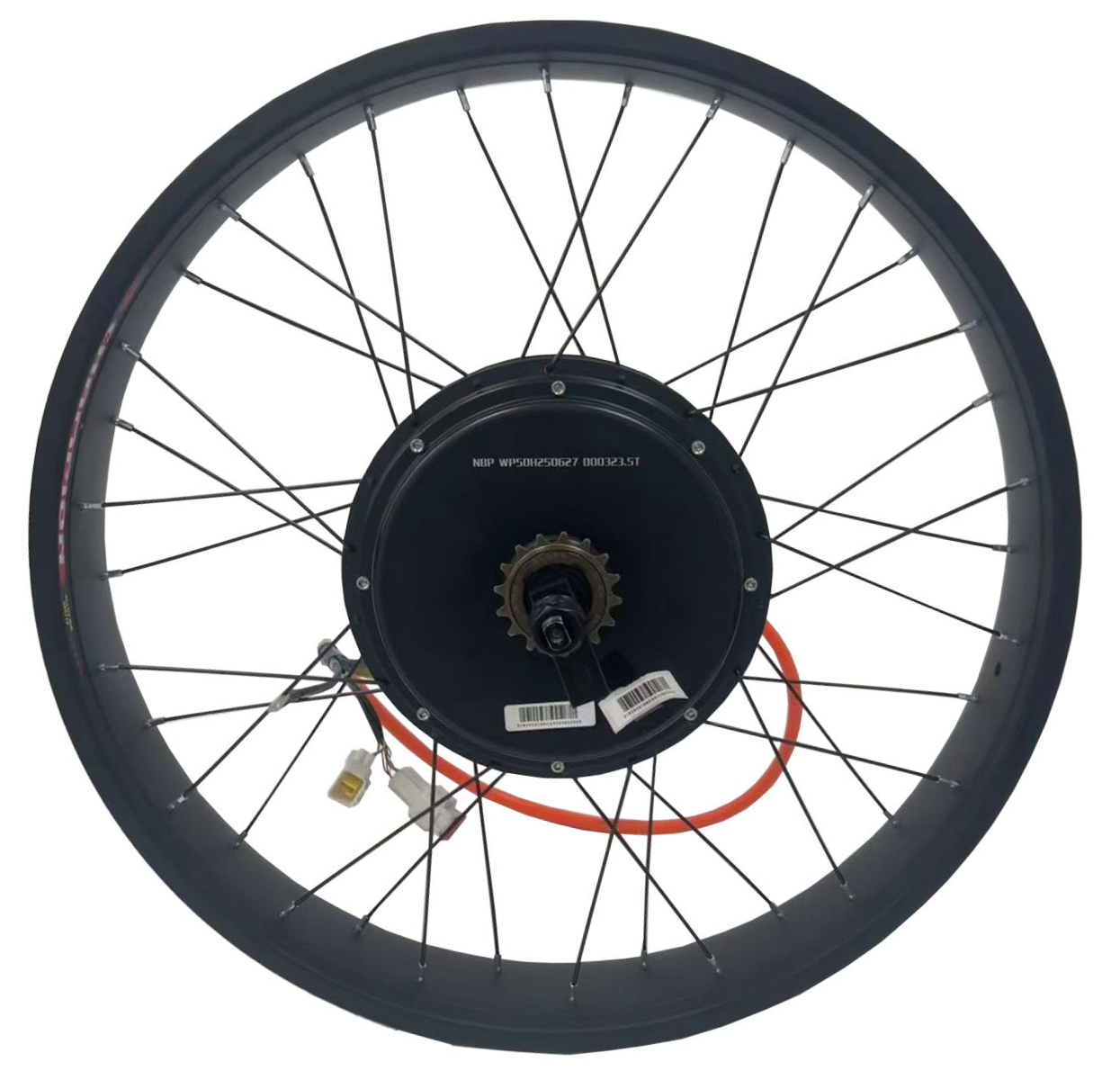

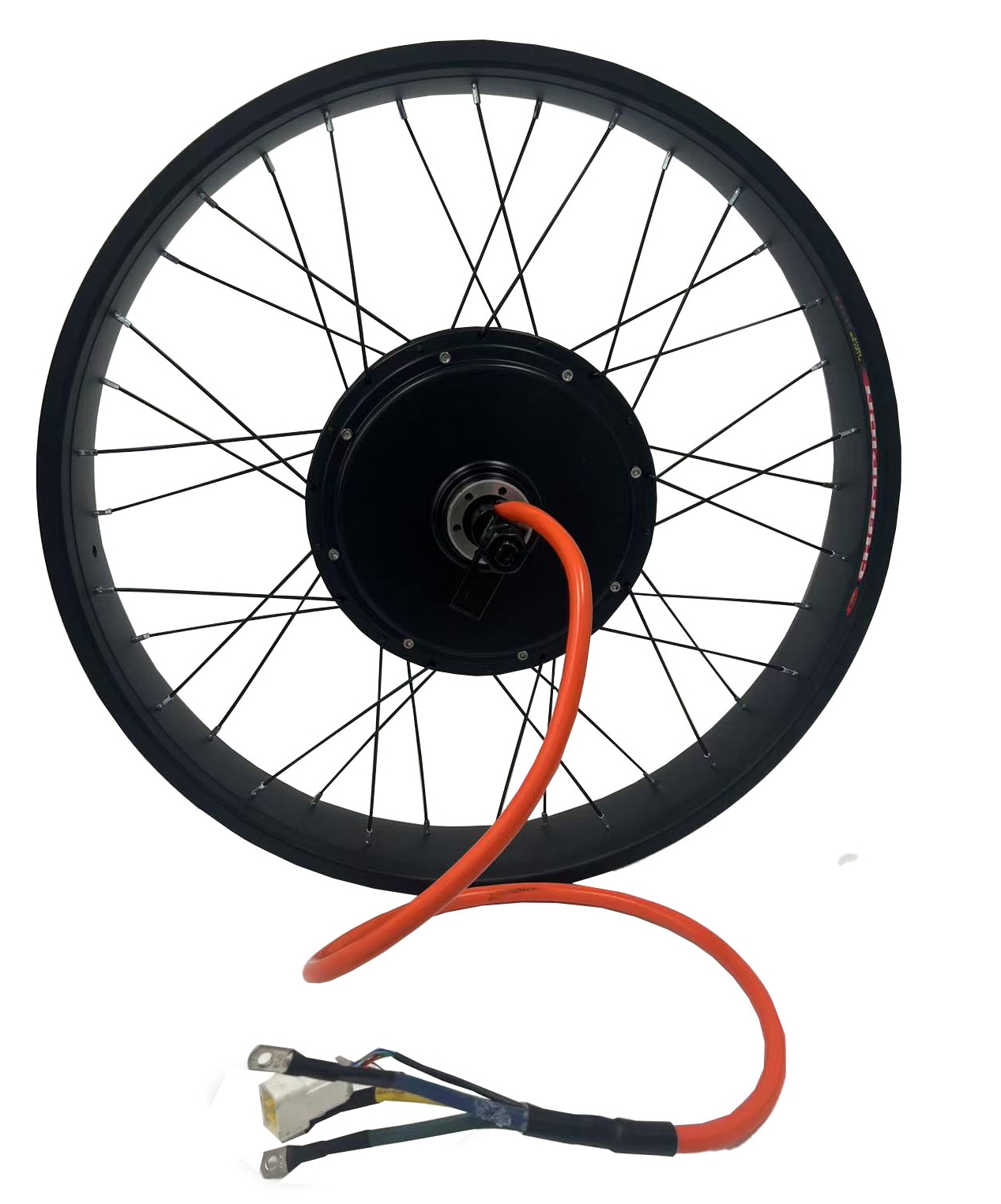

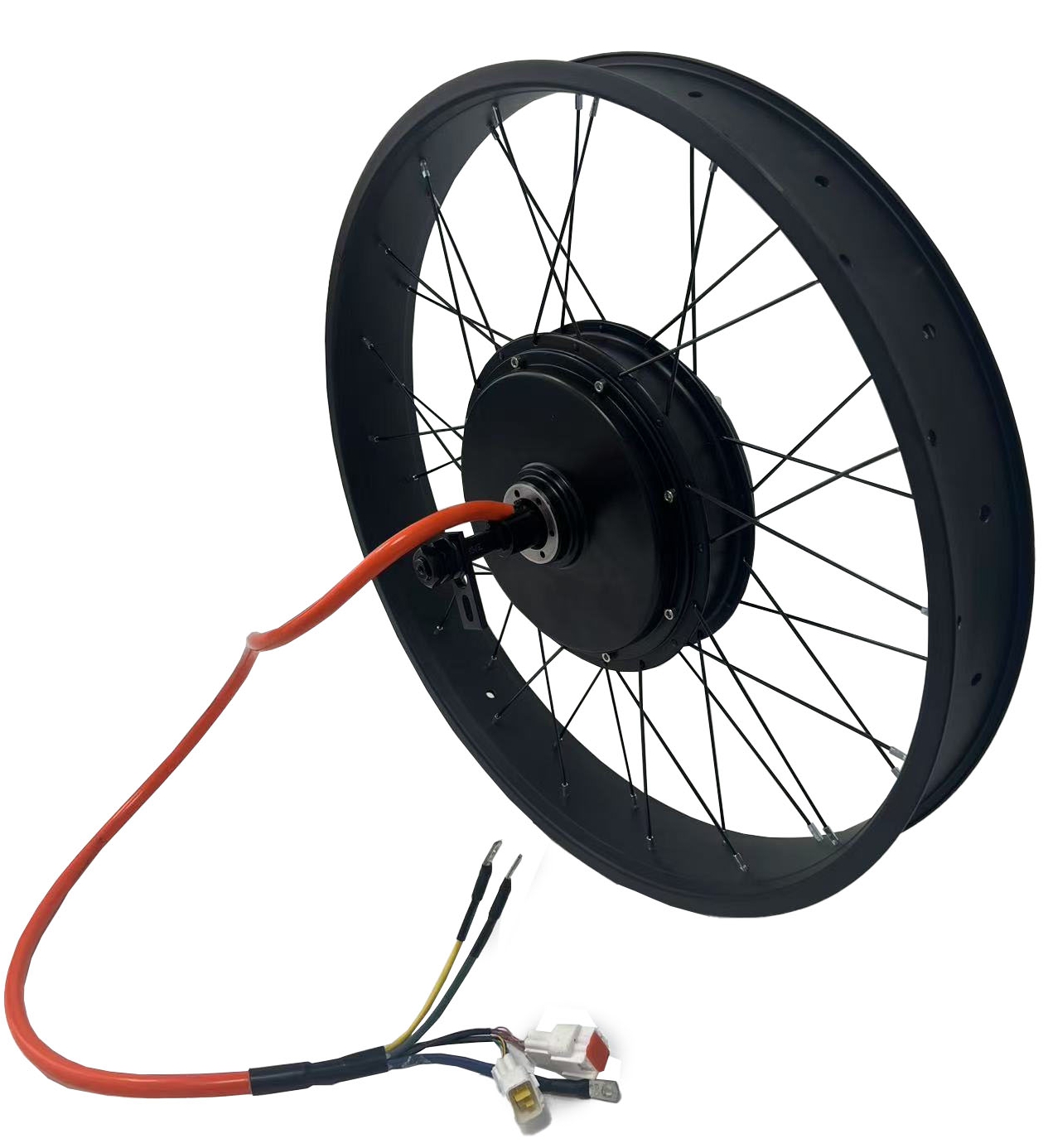

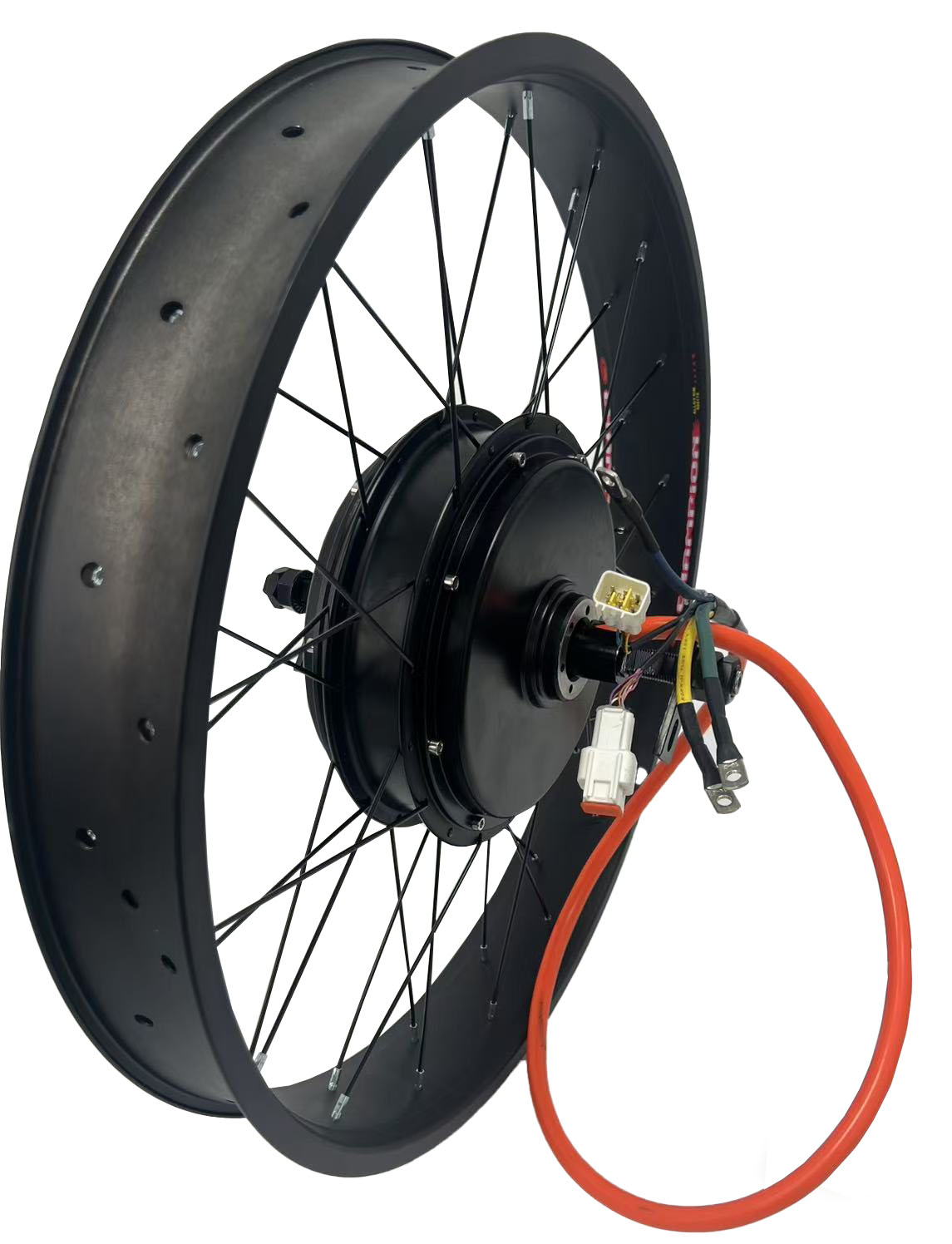

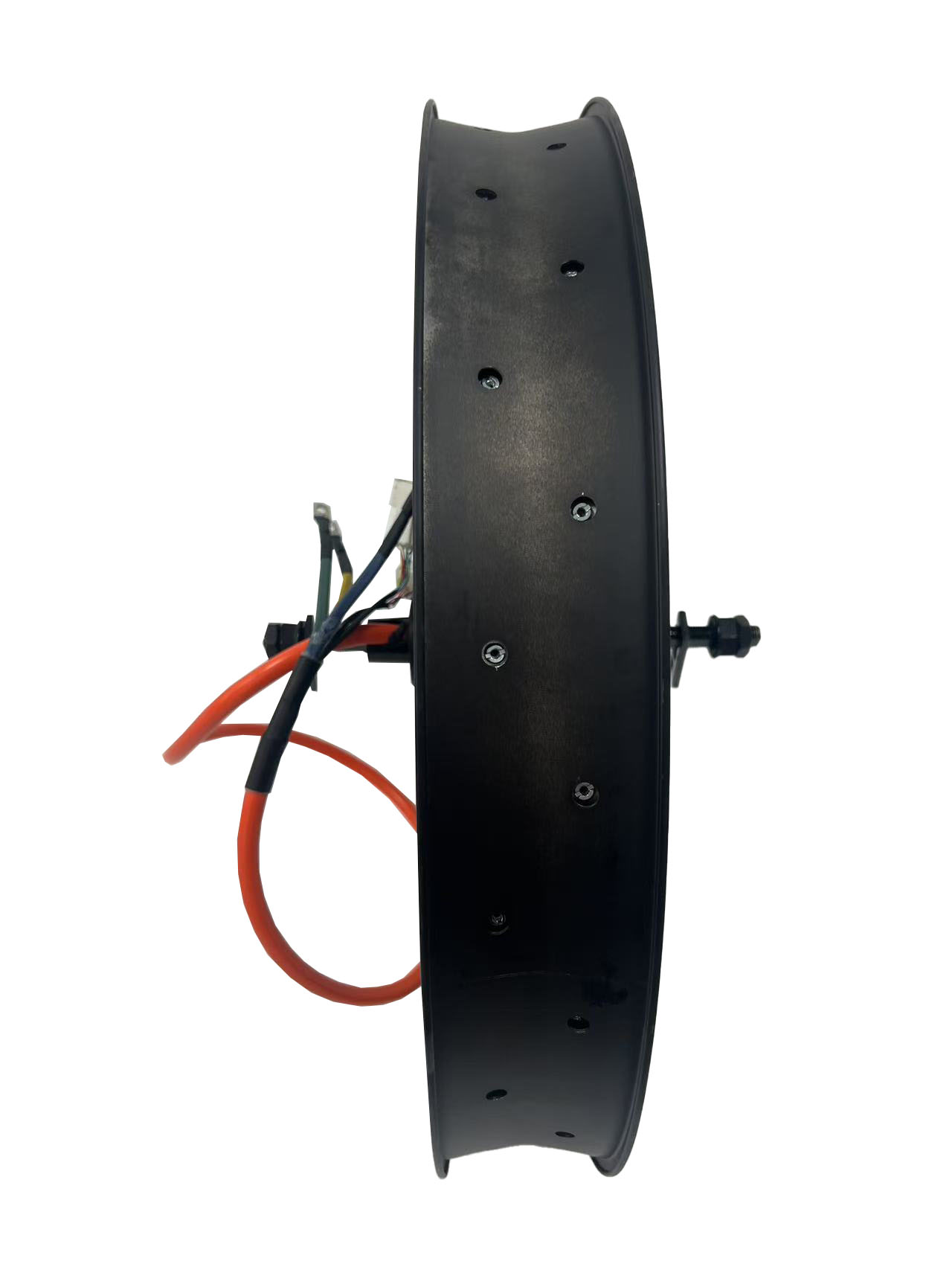

20*4.0/24*4.0/26*4.0 80mm  width double  rim with QS  3T /3.5T/4T/5T 170mm dropout 5000W Fat motorwheel with single freewheel

5000W
1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim(integrated)
3. Matched Tire: 20inch 24inch 26inch
4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 5000W
7. Peak Power: 10000W in few seconds
8. Rated Voltage: 72V
9. Speed:
3.5T: 840RPM
4T: 770RPM
5T: 650RPM
10. Drop-outs: 170mm or 190mm
11. Max Torque:
3.5T: 180N.M
4T: 200N.M
5T: 220N.M
12. Max Efficiency: approx 91%
13. Suggest Peak Phase Current: N/A
14. Thermic Probe: KTY83/122(as default)
15. Working Temperature: 70-120℃, peak 150℃
16. Brake Type: Disc Brake
17. Hall Sensor: Dual hall set with waterproof connector
18. Phase Wire:2*5mm²Cross
19. Hall Sensor Phasing Angle: 120 degree
20. Waterproof Grade: IP65
